Conductive ink

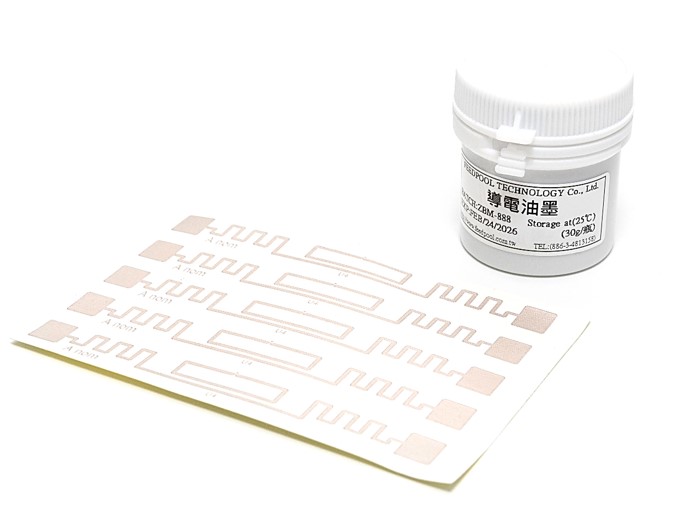

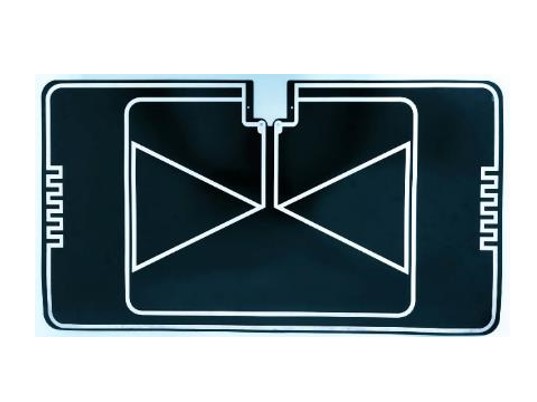

Specially designed conductive ink for UHF RFID electronic label antennas, which adheres excellently to Mylar and paper, providing outstanding flexibility and adhesion. It is widely used in the production of membrane switches, computer keyboard circuits, and both soft and hard board circuits.

Conductive ink
Product Application Resin
type		 Viscosity
cp		 TI. Hardness Volume
resistivity
Ω-cm		 Curing
conditions
min/°C		 TDS
SP-2000A-URT4 • UHF RFID electronic tag antenna
• Excellent adhesion with Mylar and paper 		Polyester
resin 		1000 2.5 --- 0.000028 1/150
SP-2000A-SFB6 • Halogen-free conductive silver paste
• Excellent flexibility and adhesion
• Thin film switches, flexible and rigid circuit boards 		15000 2H 0.00002 60/120
SP-2000A-YKC7B • Low-temperature cured conductive silver paste
• Excellent flexibility and impedance value
• Applied in the printing of PDLC film electrodes
• Excellent adhesion to ITO surface of substrate 		Acrylate
resin 		24000 0.000085 10/100
